CATV QAM ANALYZER METER PLUS MER,BER,CONSTELACION

Reference : DS2400Q

CATV QAM ANALYZER METER PLUS MER, BER, CONSTELACIÓN.



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Description:

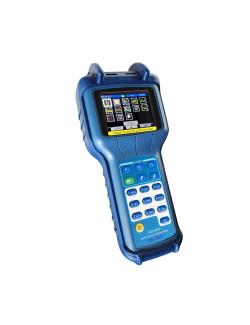

The DS2400Q is a multifunction instrument, which supports QAM constellation and analog signals for CATV networks. It is the ideal tool for initial network construction, for subscriber installations as well as for service and troubleshooting tasks. Its ruggedized design, which includes a shock protector, combined with icon display GUI and auto pass/fail specified limit feature provides increased efficiency and productivity for all types of technicians.

Other features such as return path & forward spectrum scan, 12 favorite tilt frequencies, AC line voltage test, HUM and DC voltage measurements, combined with complete data logging and a management software, makes this unit a versatile tool for cable installations.

MER, PRE & Post BER measurements and BER statistics feature allows quick testing of loose connections related to pixelating or slow DS internet data flow. This function can identify mismatches caused by open coaxial lines or corroded devices.

DS2400Q

Specific References

Function & Benefits

  • 5 MHz ~1 GHz range (analog/digital signals)
  • Multiple user channel plans with learn mode
  • QAM, QPSK, COFDM power measurements
  • QAM MER w/constellation display
  • Pre and Post BER analysis
  • BER, ES, SES, COR/UNCOR bps
  • Return Path & FWD spectrums scan
  • Pass/Fail limit test functions w/AUTO storage
  • Tilt measurements display (12 frequencies)
  • AC-DC voltage measurements including HUM
  • Measurement data storage capability
  • User-friendly operation (ICON-GUI)
  • Color display 2.8” (320×240 TFT LCD)
  • Management PC software included – Toolbox
