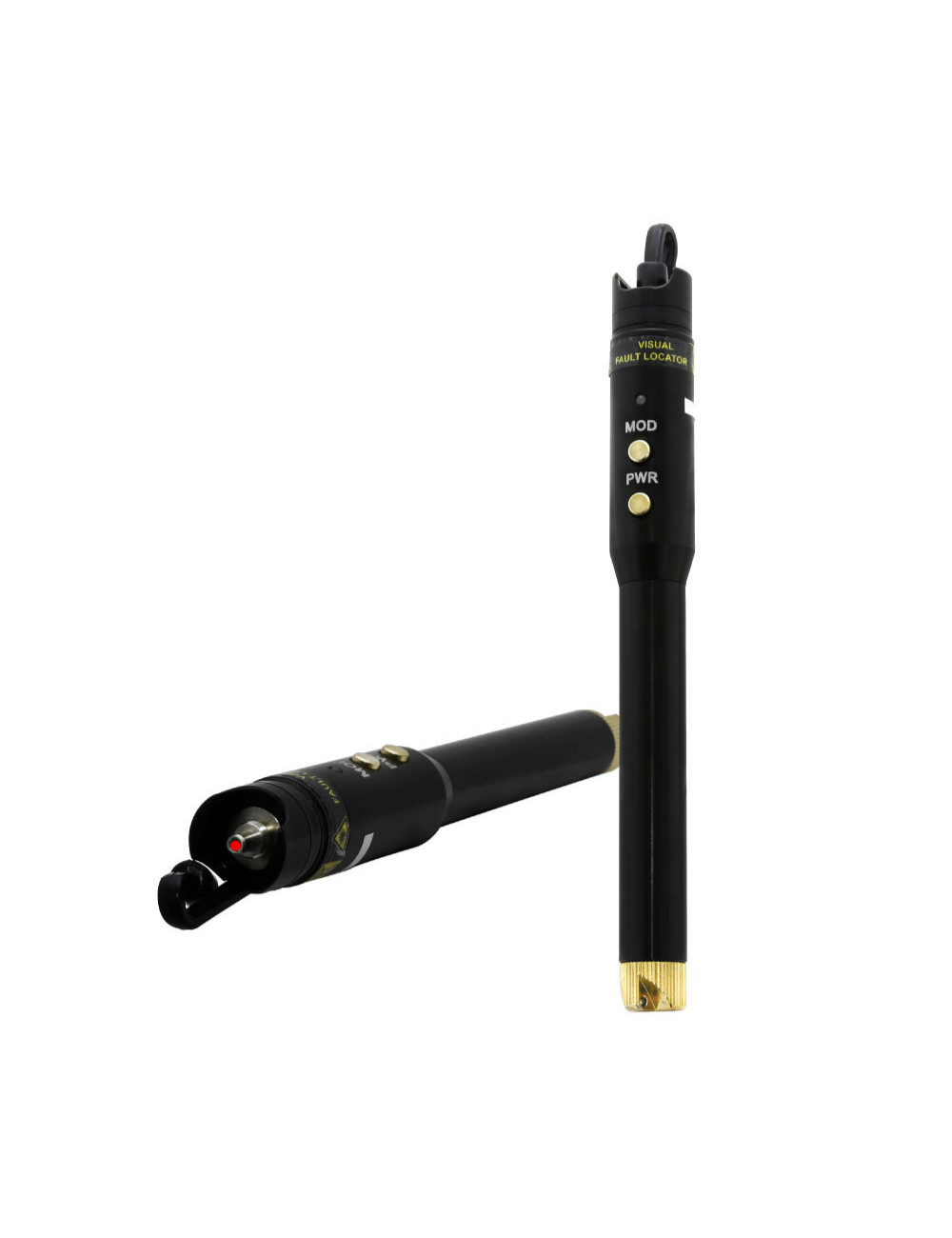

F.O LOCALIZADOR VISUAL TIPO LAPICERO 1MW

Reference : MZ0531P

Pen-type Visual Fault Locator



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Specifications

MZ0531  Pen-type VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:

  • Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
  • Finding the faults of OTDR dead zone
  • End-to-end visual fiber identification

Features

  • 2.5mm universal connector, for 1.25mm connectors,
  • FC (Male)-LC (Female) convertor can be provided on requests.
  • Operates either in CW or Pulsed
  • Constant output power
  • Lower Battery warning
  • Long battery life (up to 60 hours)
  • Crash-proof and dust-proof design for laser head
  • Laser case ground design prevents ESD damage
  • Burning testing to ensure the reliability.
  • Portable and rugged, easy to use
  • Guarantee to CE standards include EMC, EMI, ROHS

MZ0531P

Data sheet

Weight
120g(Without battery)
Operating temperature
-10~+45 (℃)
Wavelength(nm)
650nm±10nm (635nm can be required on request)
Optical Connector
2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Power Supply
2 AA alkaline batteries
Battery Operating Time
650nm@1mw ≥65hour
Storage Temperature
-40~+70 (℃)
Dimension(mm)
¢15X180
Emitter Type
FP-LD
Output Power
Optional choice for 1mw, 3mw, 5mw,10mw on actual needs
Operating Model
Both CW and Pulse available
Pulse Frequency
2~3Hz
Test with Panasonic
LR6 AA ALKALINE battery
