F.O CAJA DISTRIBUCION 2X16 SC/APC, C/SPLITT.PLC 1X8 /BK
Reference
: MZDB0216RI/F-8
CAJA DISTRIBUCION 2X16 SC/APC, C/SPLITT.PLC 1X8 /BK.
Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Description

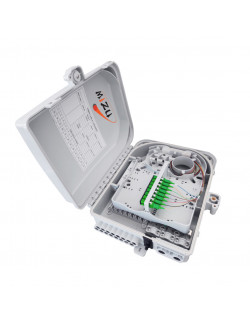

MZDB0216BK/F8.- fiber access termination box is able to hold up
to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice. 1*8 Splitter can be installed as an option.
Efficient cable management.
8 ports cable entrance for drop cable.
TECHNICAL DATA
Configuration
|
Material |
Size |
Max Capacity |
Weight |
Color |
||
|
PC +ABS |
A*B*C(mm) 210*2215*50 |
SC8 Ports |
LC16 Ports |
PLC 1x8(SC) |
0.6kg |
White |
MZDB0216RI/F-8
